Nanocrystalline

A 40 Å cubic silicon dioxide supercell (~4866 atoms), large crystalline grains with amorphous boundaries.

silicon_dioxide_nanocrystalline_generate.py reproduces this case.

Orientation refinement

MACE+wall relaxation

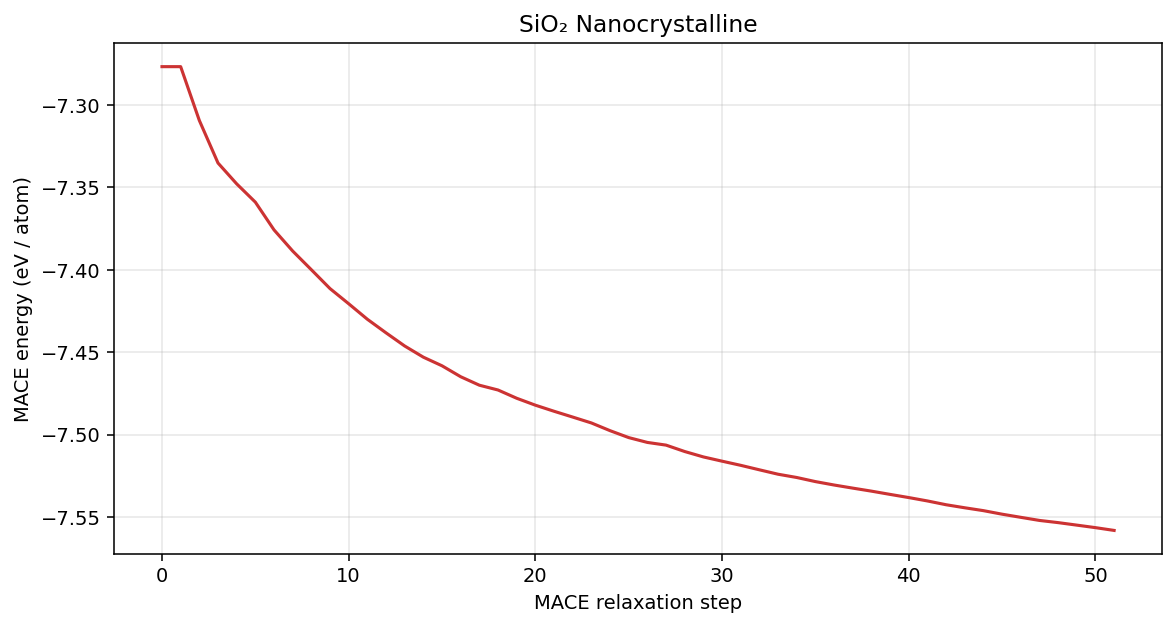

Energy

Silicon dioxide Nanocrystalline MACE energy per atom
stageE (eV/atom)
after orientation refinement-7.072
after cleanup-7.277
after MACE-7.560

g₃ distributions

After cleanup

After MACE

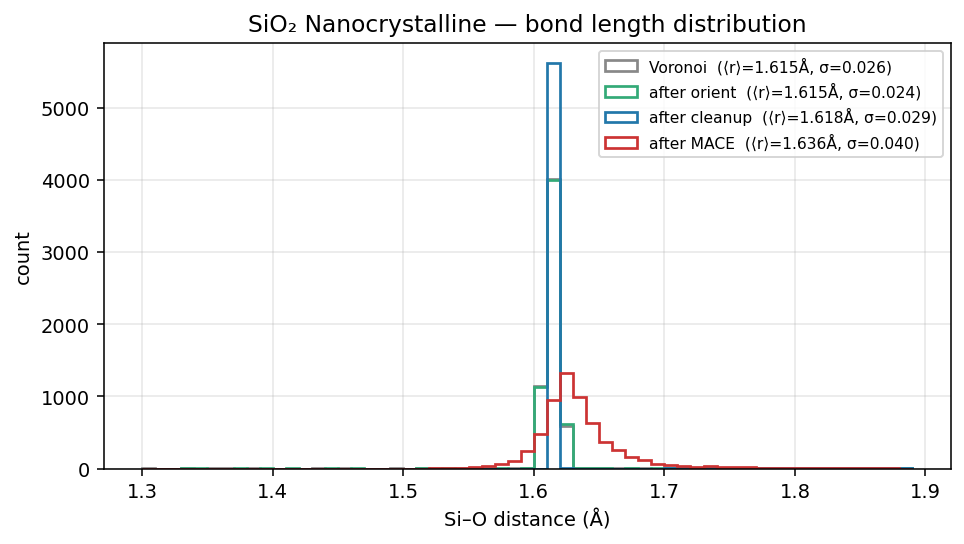

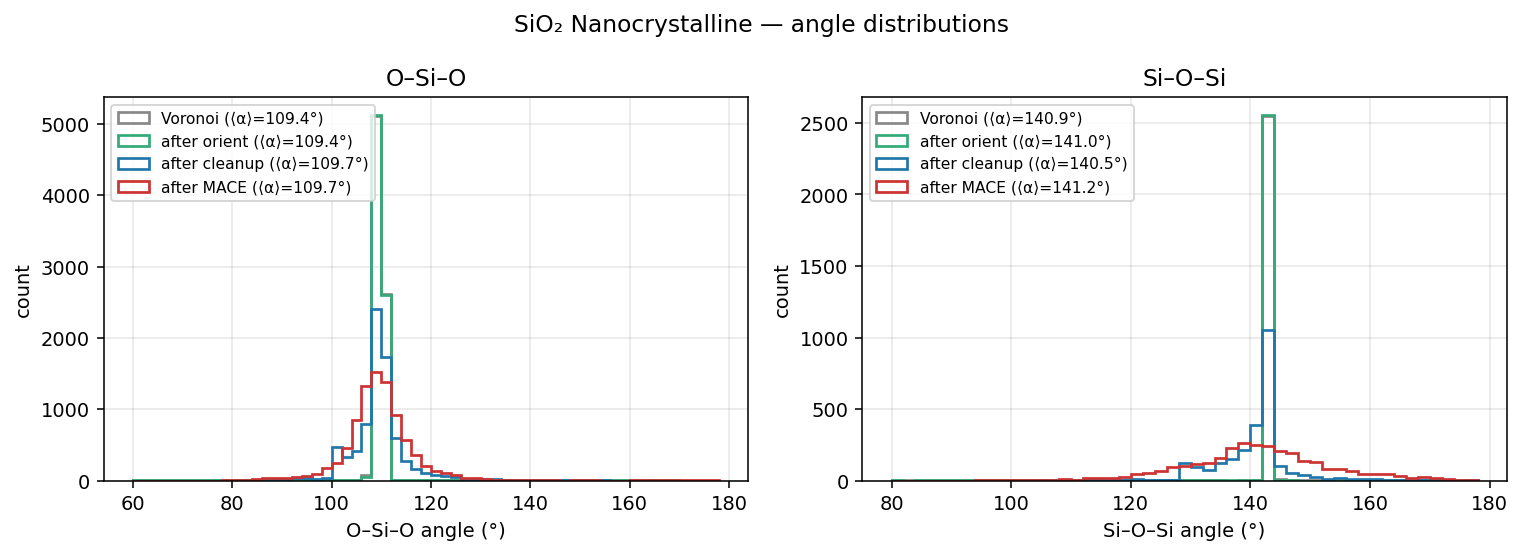

Bond length and angle distributions

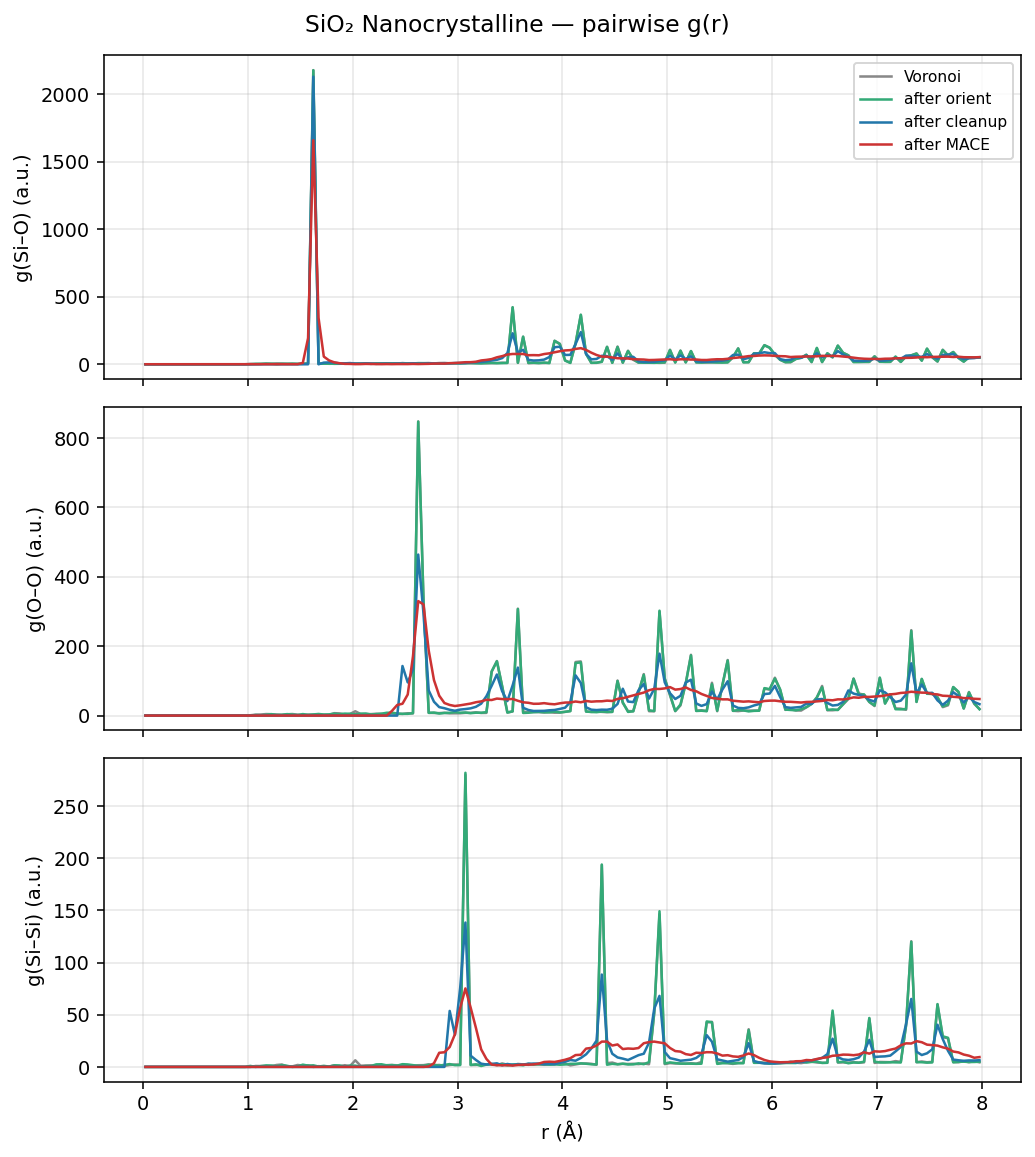

Silicon dioxide Nanocrystalline bond length distributionSilicon dioxide Nanocrystalline angle distributionsSilicon dioxide Nanocrystalline pairwise g(r)
