Nanocrystalline

A 40 Å cubic copper supercell (~5202 atoms), large crystalline grains with amorphous boundaries.

Orientation refinement

FIRE relaxation

stagebond mean (Å)bond σ (Å)
Voronoi2.5790.145
after orient2.5790.140
after cleanup2.5630.144
after FIRE2.6010.156

MACE-MP0 single point of the final structure: -3.994 eV/atom.

g₃ distribution — after FIRE

Bond length and angle distributions

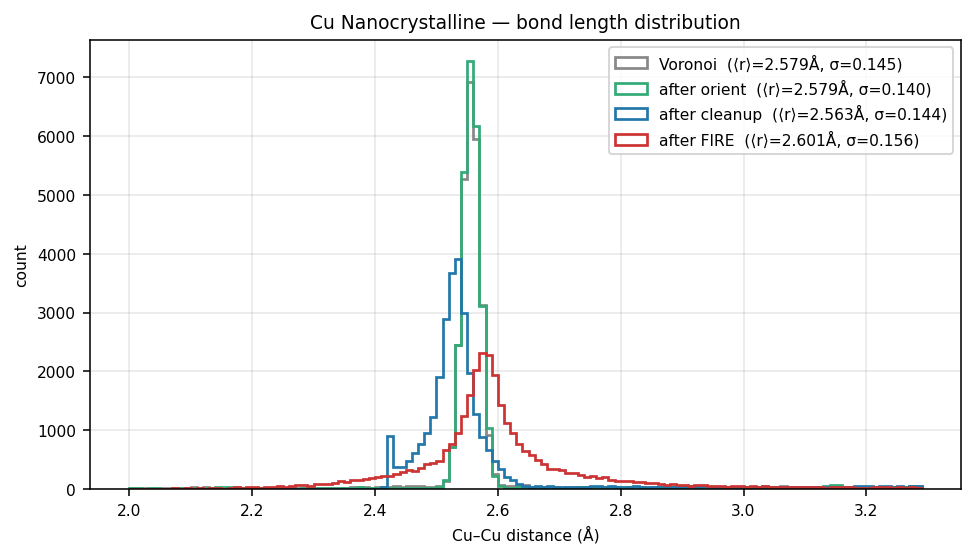

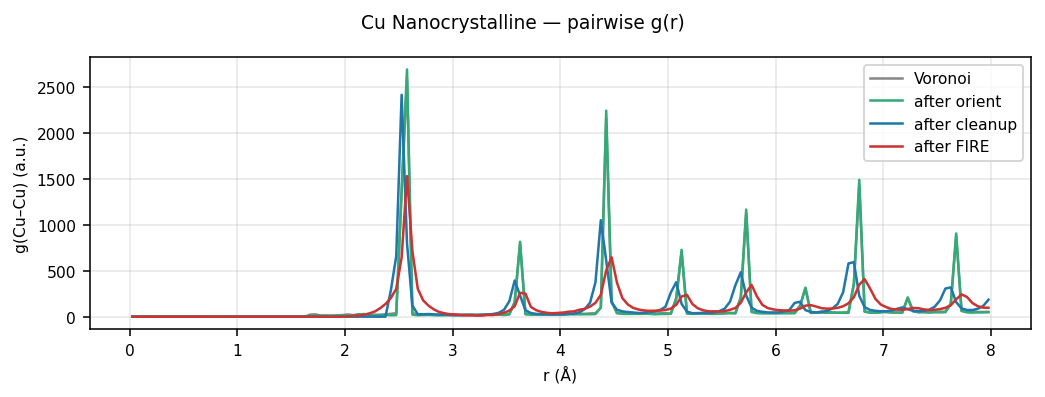

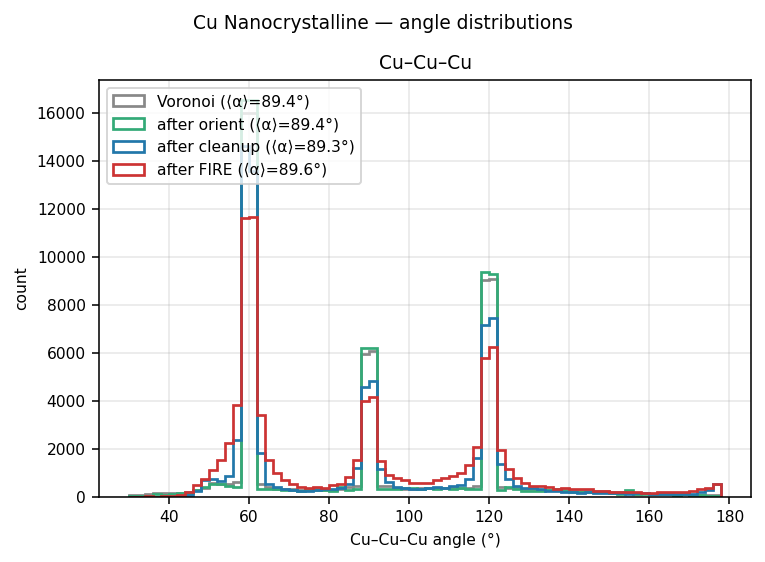

Copper Nanocrystalline bond length distributionCopper Nanocrystalline angle distributionsCopper Nanocrystalline pairwise g(r)
