MRO

A 40 Å cubic strontium titanate supercell (~5130 atoms), medium-range order.

Orientation refinement

FIRE relaxation

stagebond mean (Å)bond σ (Å)
Voronoi1.9630.069
after orient1.9610.057
after cleanup1.9300.157
after FIRE1.9650.183

MACE-MP0 single point of the final structure: -7.373 eV/atom.

g₃ distribution — after FIRE

Bond length and angle distributions

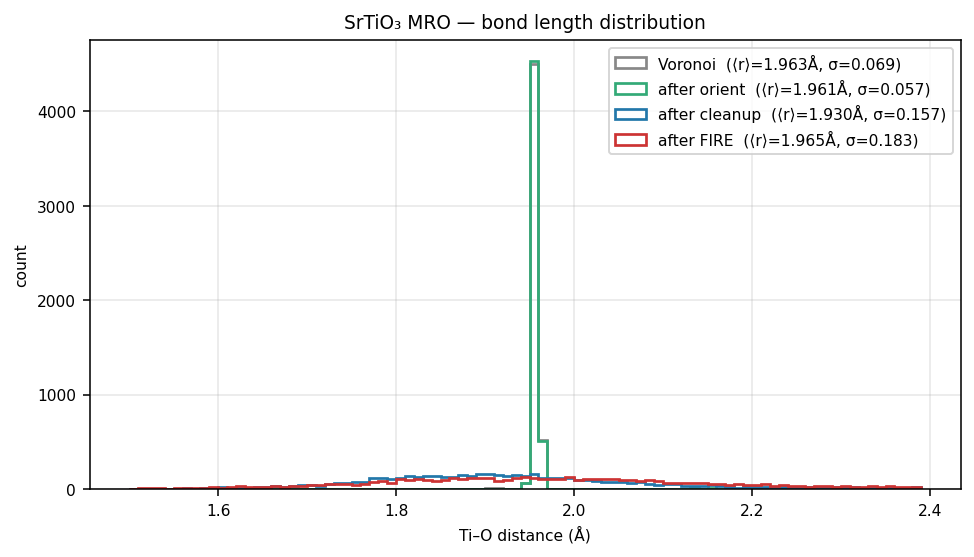

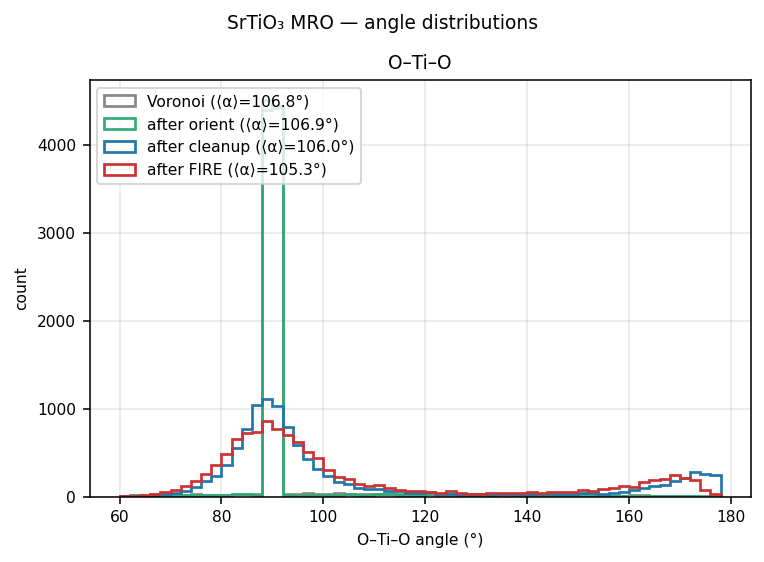

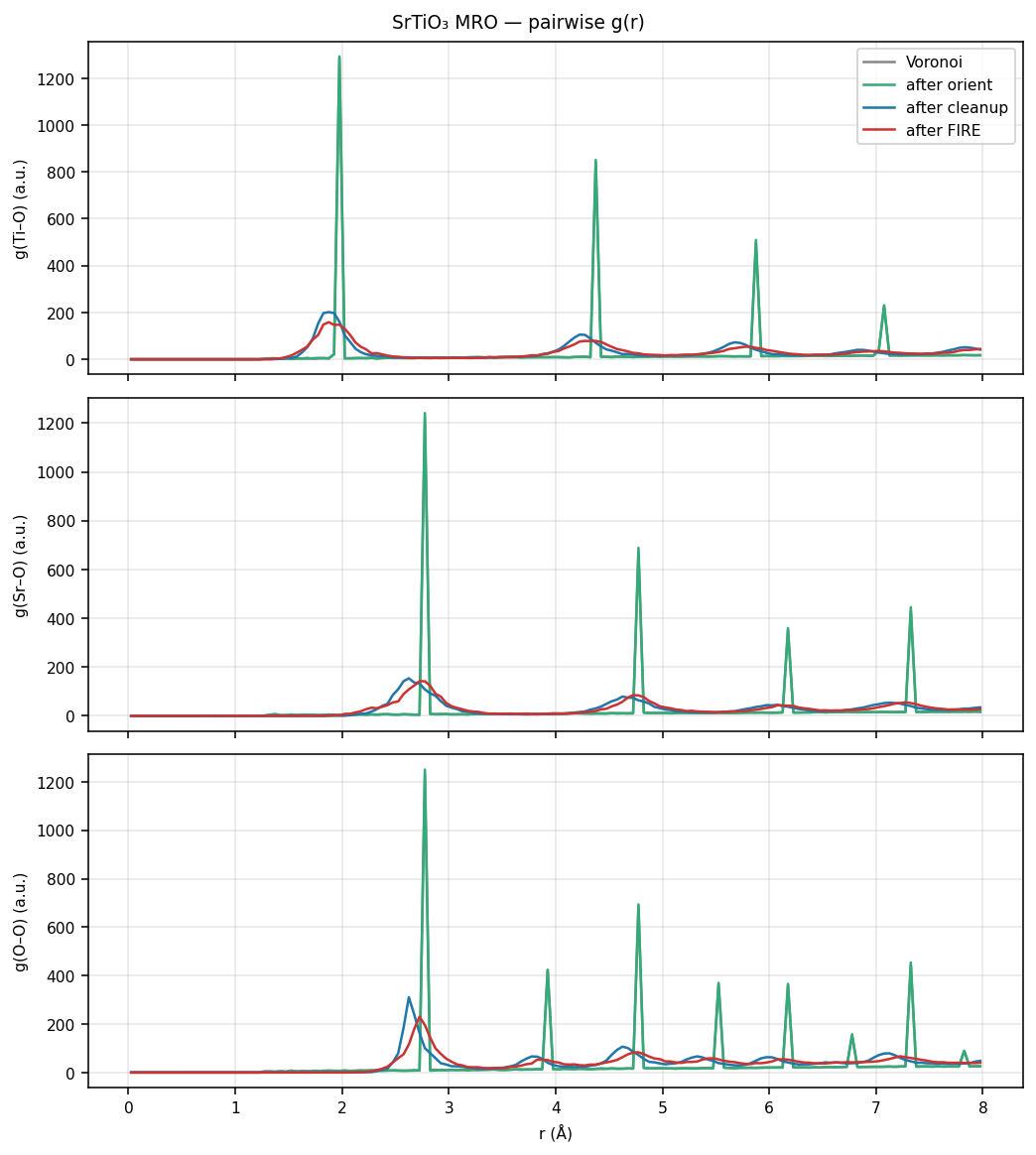

Strontium titanate MRO bond length distributionStrontium titanate MRO angle distributionsStrontium titanate MRO pairwise g(r)
