LRO

A 40 Å cubic silicon dioxide supercell (~4866 atoms), long-range order.

Orientation refinement

FIRE relaxation

stagebond mean (Å)bond σ (Å)
Voronoi1.6150.028
after orient1.6150.029
after cleanup1.6200.034
after FIRE1.6970.057

MACE-MP0 single point of the final structure: -7.397 eV/atom.

g₃ distribution — after FIRE

Bond length and angle distributions

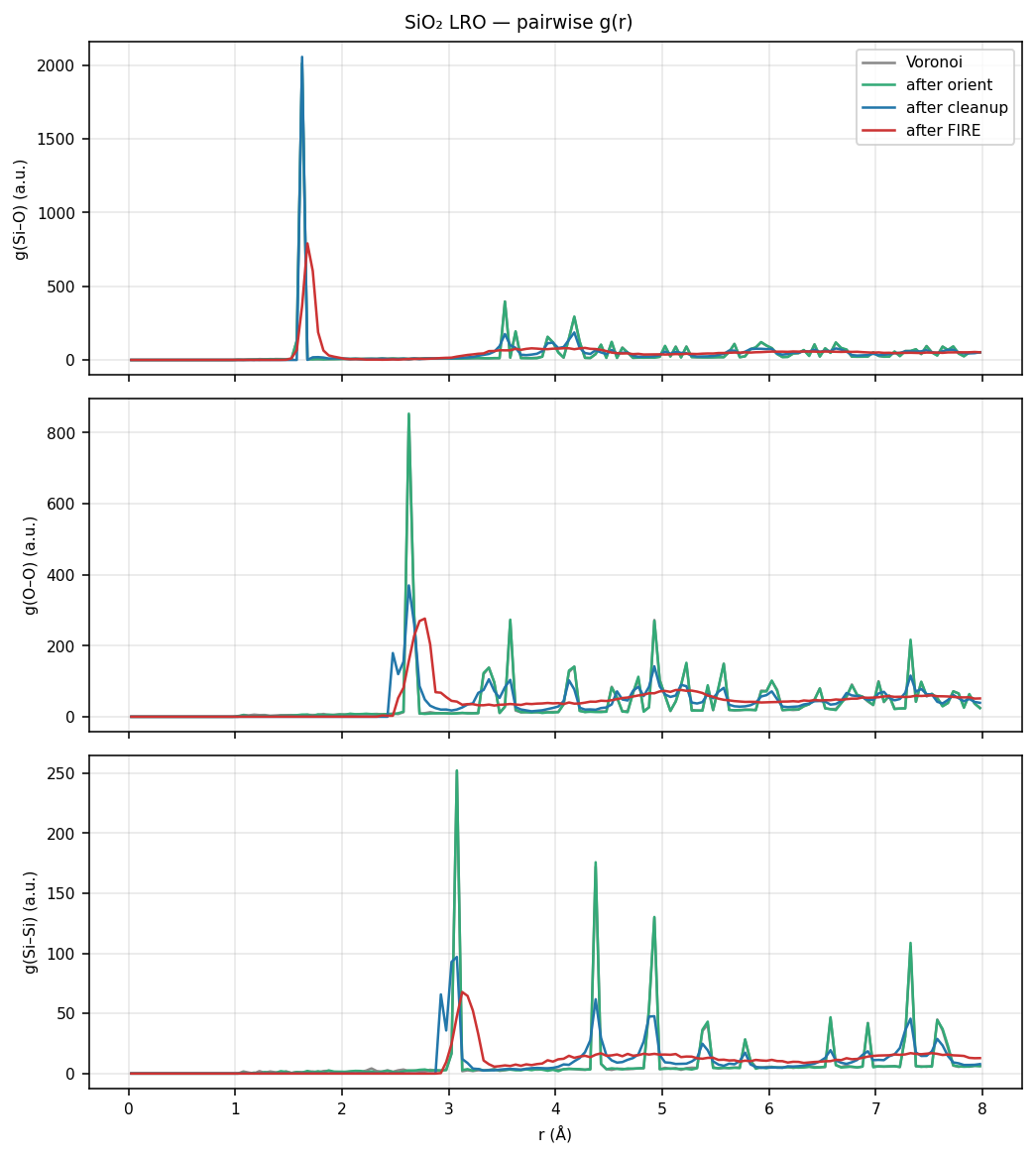

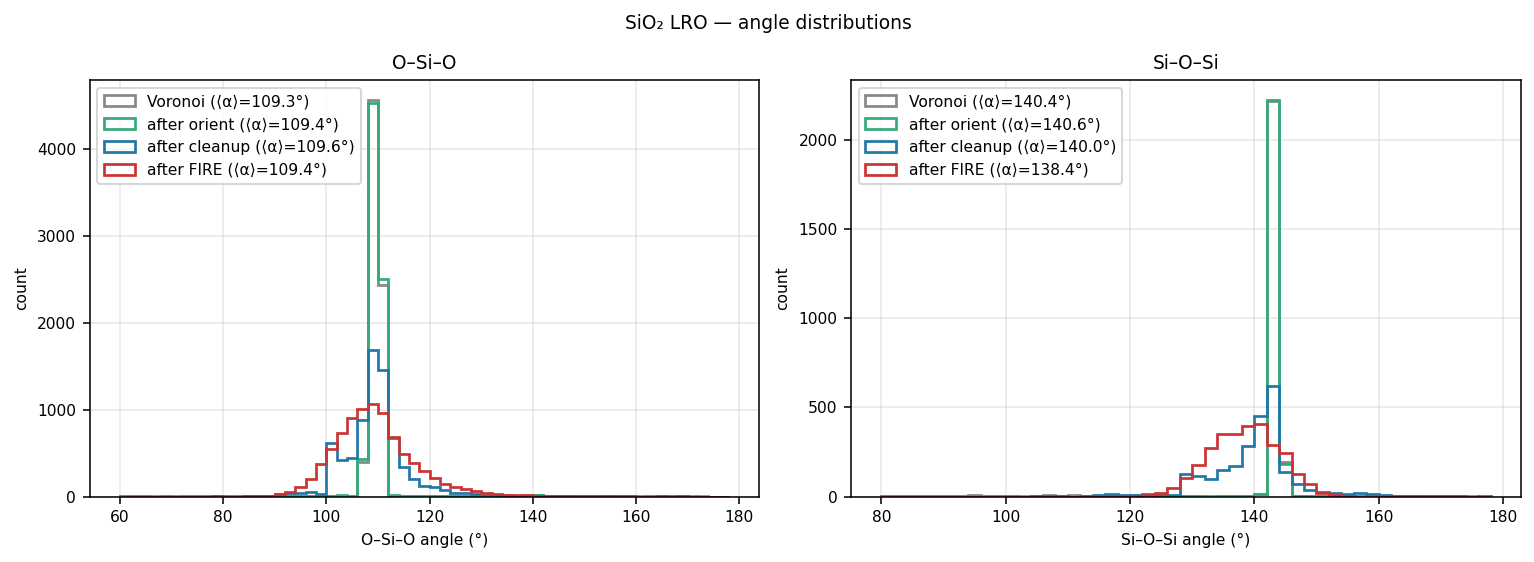

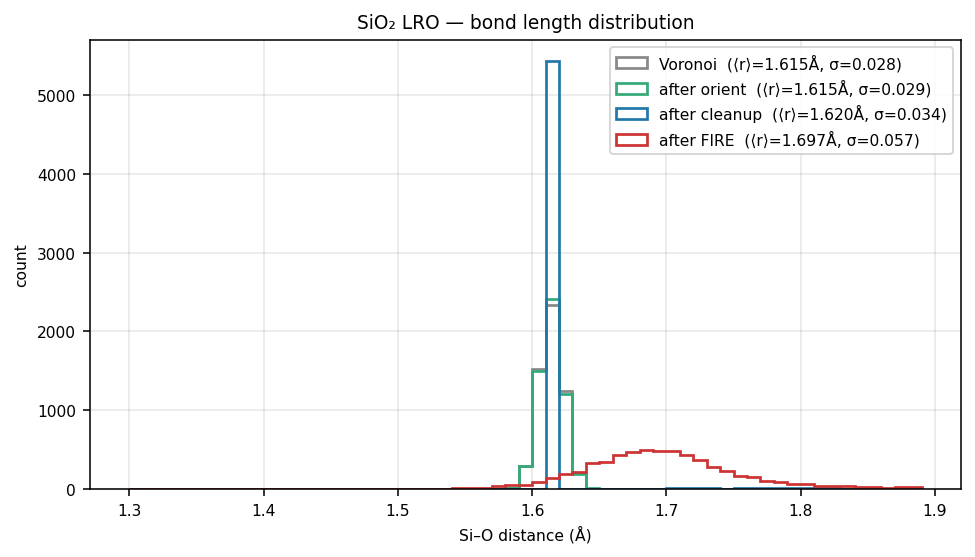

Silicon dioxide LRO bond length distributionSilicon dioxide LRO angle distributionsSilicon dioxide LRO pairwise g(r)
