SRO

A 40 Å cubic silicon dioxide supercell (~4866 atoms), short-range order.

Orientation refinement

FIRE relaxation

stagebond mean (Å)bond σ (Å)
Voronoi1.6170.043
after orient1.6160.040
after cleanup1.6240.044
after FIRE1.7070.067

MACE-MP0 single point of the final structure: -7.268 eV/atom.

g₃ distribution — after FIRE

Bond length and angle distributions

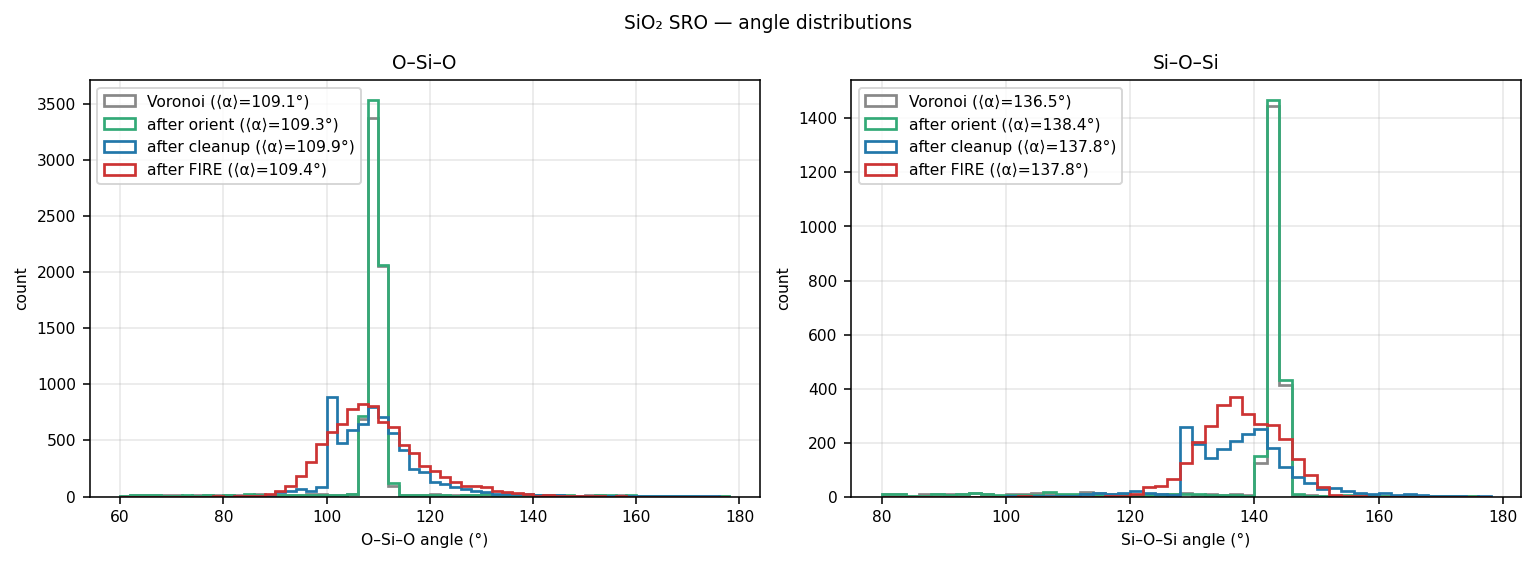

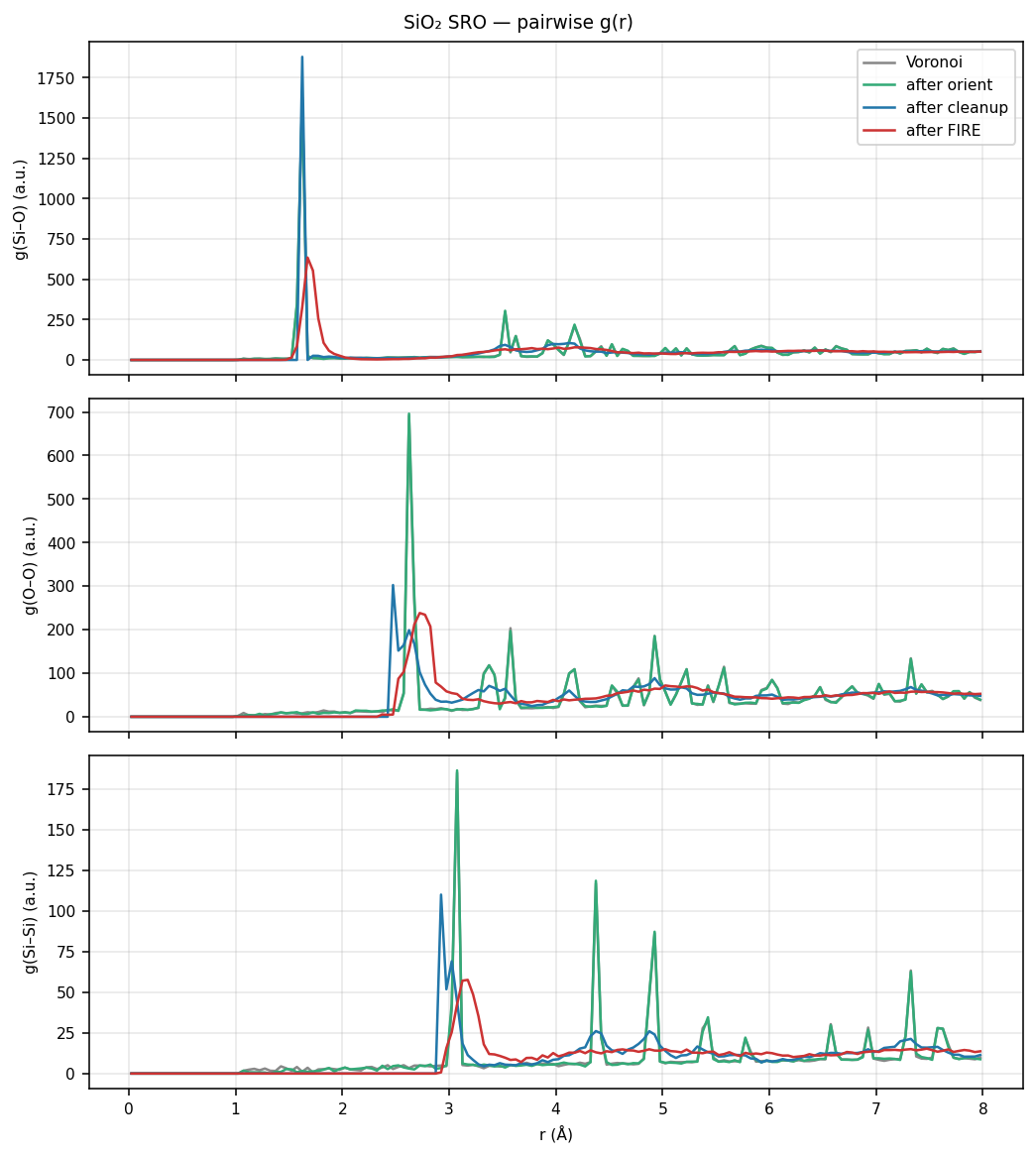

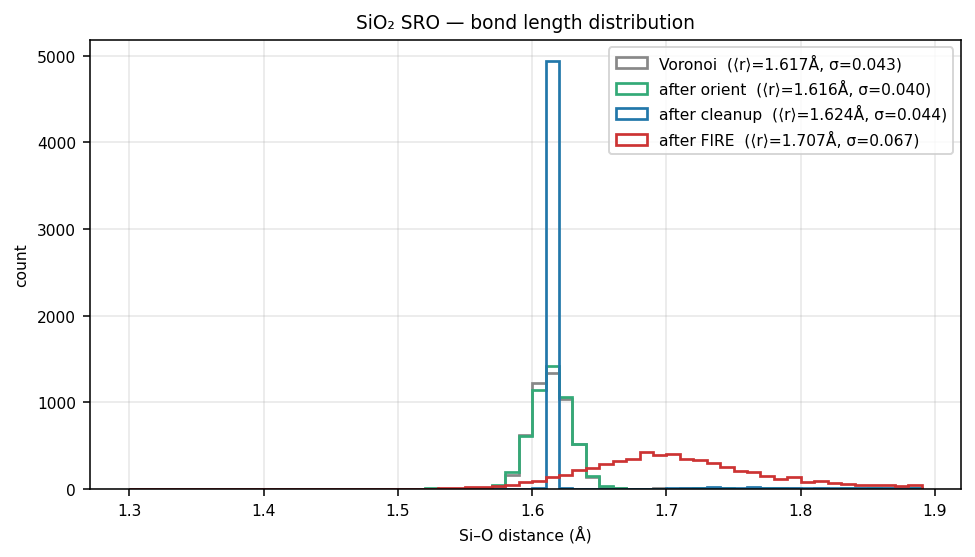

Silicon dioxide SRO bond length distributionSilicon dioxide SRO angle distributionsSilicon dioxide SRO pairwise g(r)
