Practical guidance for 4D-STEM

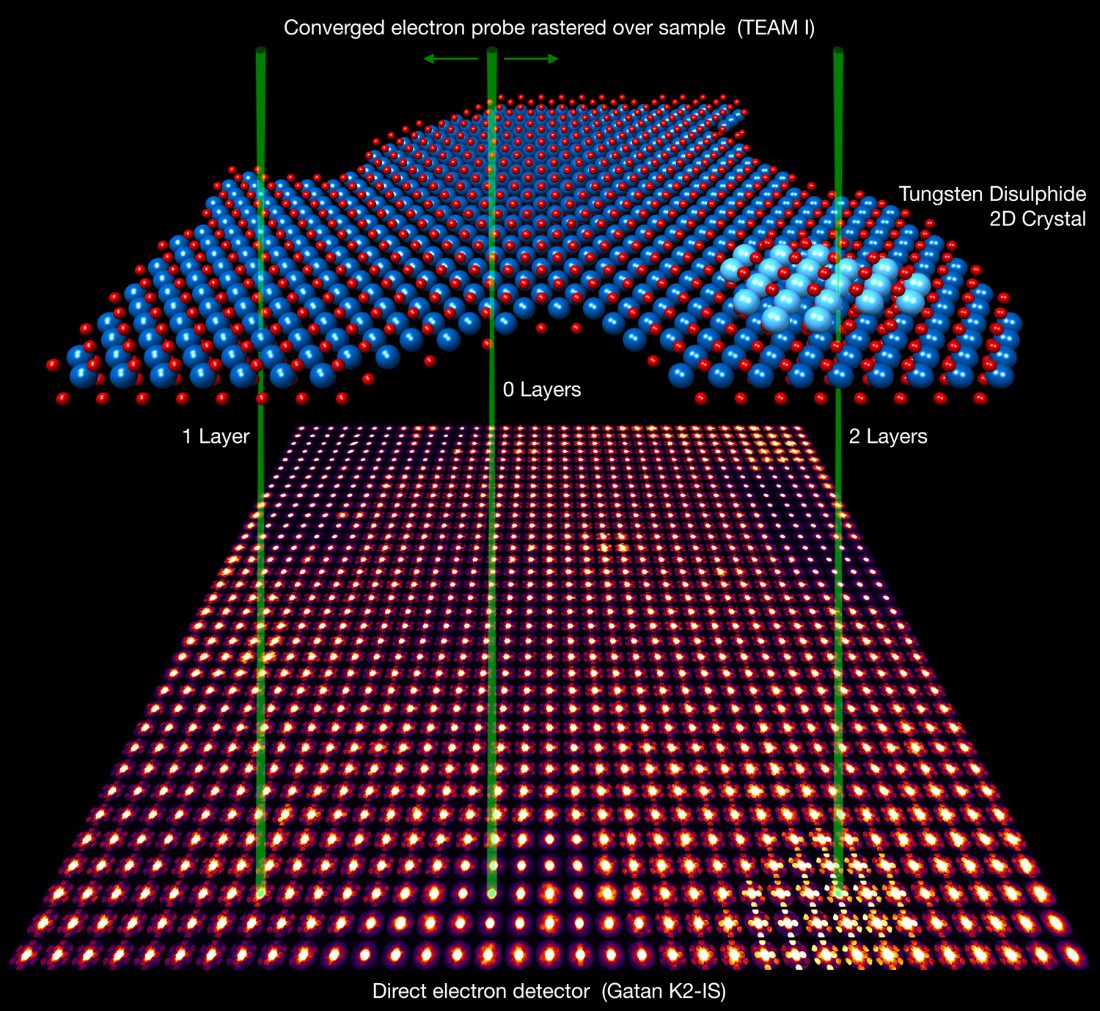

In four-dimensional scanning transmission electron microscopy (4D-STEM), we scan a focused or nearly-parallel electron probe over a two-dimensional grid of positions on the sample, and record a full two-dimensional diffraction pattern at every position Ophus (2019). The result is a four-dimensional dataset: two real-space scan dimensions and two reciprocal-space detector dimensions.

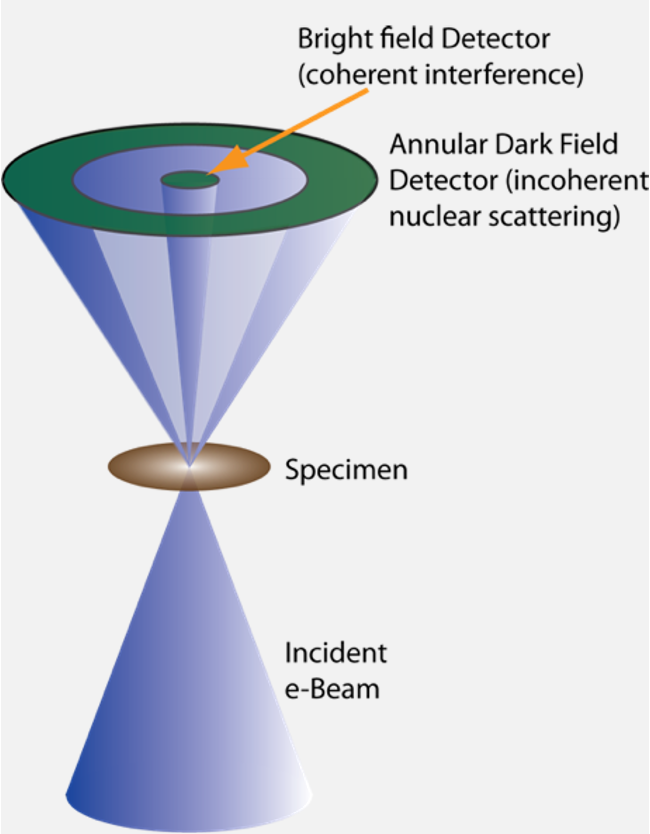

Almost every analysis in this course (strain mapping, orientation mapping, virtual imaging, polymer orientation, pair distribution functions) starts from the same kind of measurement, and the quality of every one of them is set at the microscope, before any software is involved. Where conventional STEM integrates each pattern down to one number per detector per position, 4D-STEM keeps everything:

The fundamental trade-off: probe size vs. angular resolution¶

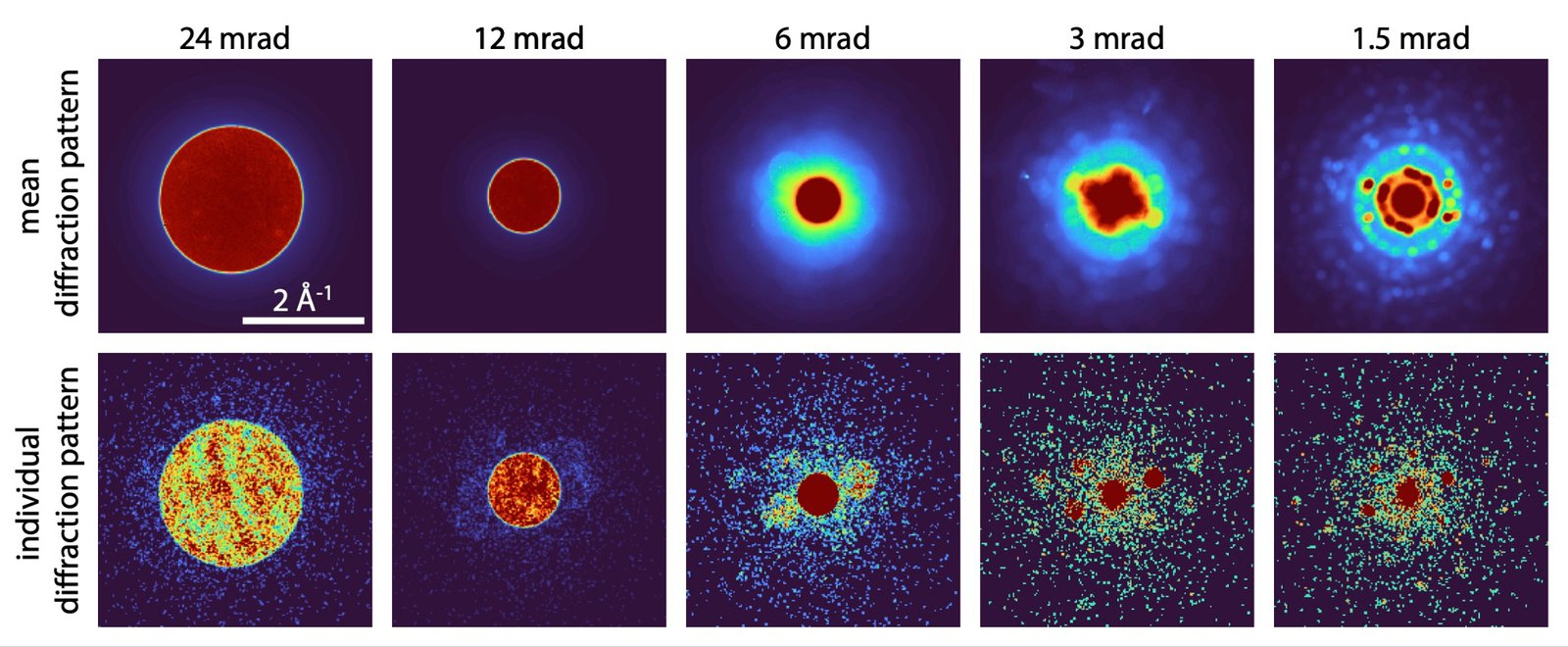

The convergence semi-angle α of the probe controls both the real-space probe size and the size of the diffracted Bragg disks. A large convergence angle gives a small probe (better spatial resolution) but large, potentially overlapping disks; a small convergence angle gives sharp, well-separated diffraction spots but a wider probe. Disk overlap begins when 2α exceeds the Bragg angle separation of adjacent reflections, so for disk-registration methods such as strain mapping we typically choose α from a fraction of a milliradian up to a few milliradians: the “nanobeam” regime, with probe sizes of roughly 1–5 nm.

Things to consider when choosing probe conditions:

• Convergence angle: small enough that disks of interest do not overlap, large enough that the probe stays small compared to the microstructural features you want to resolve. Disk-edge sharpness also sets how precisely disk positions can be measured.

• Probe current and dose: disk registration works well even at low dose, but weak reflections (superlattice peaks, high-order Laue zones, amorphous halos) need adequate counts. For beam-sensitive materials (see the polymer module), total fluence budgets of 1–100 e⁻/Ų may apply Bustillo et al. (2021), which dictates probe current, dwell time, and step size.

• Scan step size: for mapping, the step is usually chosen comparable to or larger than the probe size. Oversampling wastes dose; undersampling misses microstructure.

• Camera length: sets which scattering angles land on the detector. Strain and orientation mapping want the first few orders of Bragg reflections; PDF measurements want to reach high scattering vectors (several Å⁻¹).

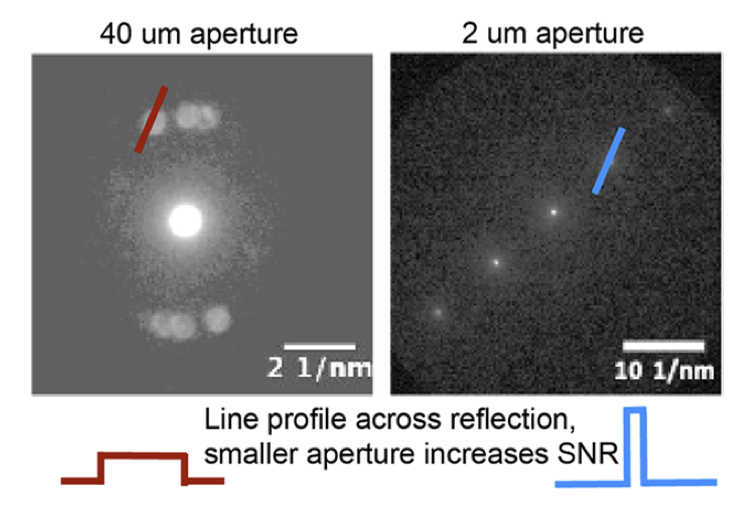

• Aperture size: the physical condenser aperture sets the convergence angle and the coherence of the illumination, and smaller apertures can substantially improve the signal-to-noise of weak reflections by sharpening the diffracted spots:

Detectors and cameras¶

Modern 4D-STEM is enabled by fast direct electron detectors Nord et al. (2020). Relevant camera parameters:

• Frame rate sets the total acquisition time: a 512×512 real-space scan at 1 kHz takes over four minutes, long enough that sample drift and contamination matter. Modern detectors run from ~1 kHz (hybrid pixel array detectors Tate et al. (2016)) up to ~100 kHz (thin active pixel sensors).

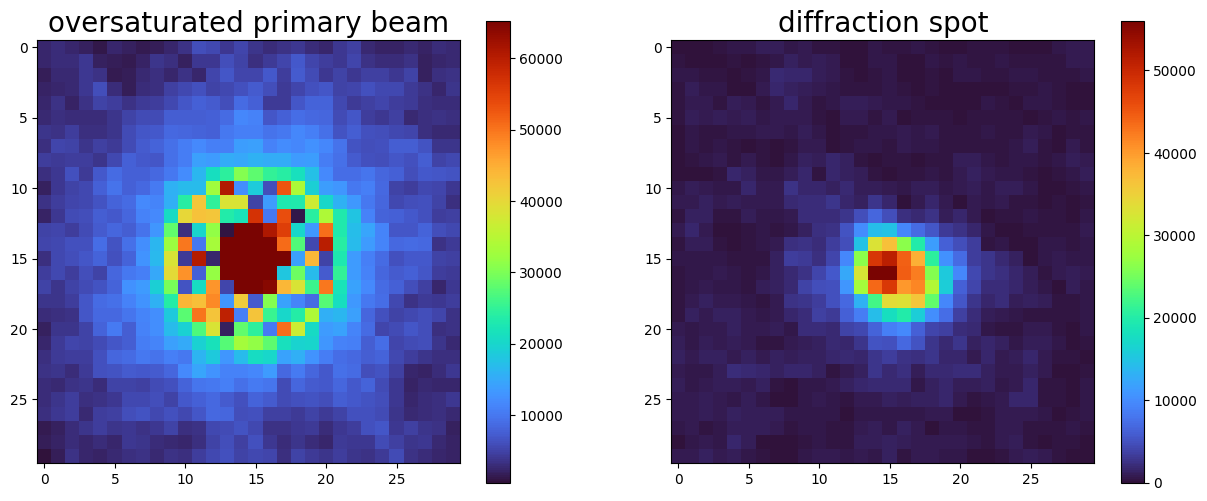

• Dynamic range: the unscattered central beam can be 10⁴–10⁶ times more intense than the weakest features of interest. High-dynamic-range detectors, a beamstop, or patterned apertures prevent saturation.

• Detector counts and noise: electron-counting detectors give Poisson-limited data, which is what makes low-dose diffraction analysis quantitative.

Practical checklist¶

1. Align the microscope and select the nanobeam aperture (often a 10–50 μm condenser aperture, or a dedicated microprobe mode).

2. Check the probe in real space (size, shape) and the diffraction pattern (disk sharpness) before starting a scan.

3. Set camera length so all reflections of interest fall on the detector; check the corners, not just the center.

4. Verify counts: no saturation in the central beam, adequate signal in the weakest disks you need.

5. Acquire calibration data: a vacuum probe image (for disk-template methods), a known calibration standard (e.g., gold nanoparticles) for pixel size and elliptical distortion, and a scan-rotation calibration.

6. Record all metadata (accelerating voltage, camera length, convergence angle, dwell time, probe current); your future self doing the analysis will thank you.

The software ecosystem¶

A healthy ecosystem of open-source Python packages has grown up around 4D-STEM analysis. They overlap in places, and that is a feature: you can move data between them, cross-check results, and pick the tool whose workflow fits your problem. This module gives a whirlwind tour of the packages used in this course.

py4DSTEM¶

py4DSTEM Savitzky et al. (2021) is an open-source Python package for 4D-STEM analysis, developed at Lawrence Berkeley National Laboratory and by a broad community of contributors. It covers the full pipeline used in this course: file I/O across many vendor formats, calibration, virtual imaging, Bragg disk detection, strain mapping, automated crystal orientation mapping (ACOM), fluctuation microscopy, and phase contrast imaging methods including ptychography. Most of the hands-on Colab sessions today use py4DSTEM.

quantEM¶

quantEM is a newer open-source toolkit for quantitative electron microscopy built on PyTorch, so the same analysis code runs on CPUs and GPUs and integrates naturally with deep learning workflows. It spans imaging, diffraction, ptychography, tomography, and spectroscopy, and is under active development by several of the course instructors and collaborators (code on GitHub).

pyxem / HyperSpy¶

pyxem is a 4D-STEM analysis library built on the HyperSpy multi-dimensional data framework. It is particularly strong for scanning (precession) electron diffraction workflows: template-matching orientation mapping Cautaerts et al. (2022), virtual imaging, and vector-based diffraction analysis, with lazy/out-of-core processing for datasets larger than memory via Dask.

Kelvin_STEM¶

Kelvin_STEM is a set of fast 4D-STEM analysis tools developed by Ian MacLaren’s group at the University of Glasgow, used in this course for virtual imaging, digital dark field, and clustering workflows on large datasets.

abTEM¶

abTEM Madsen & Susi (2021) simulates TEM and STEM experiments from first principles: multislice and PRISM image simulation directly from atomic models, entirely in Python. Simulation matters for 4D-STEM analysis: it lets you generate test data with known ground truth, design experiments (convergence angle, thickness, tilt sensitivity), and build the diffraction template libraries used in orientation mapping.
